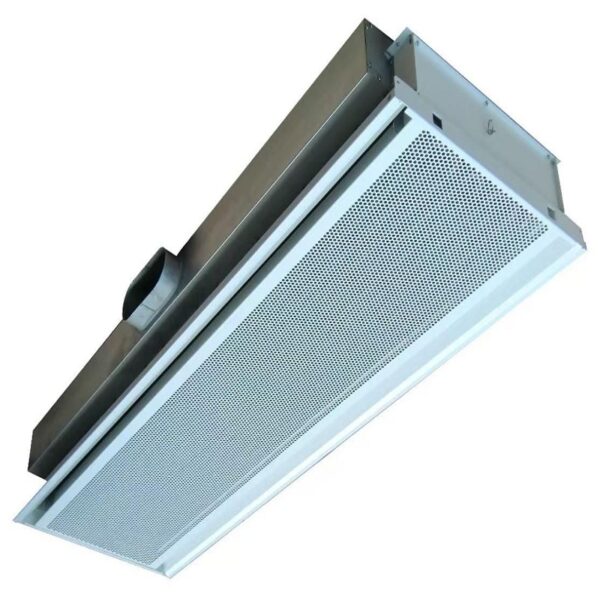

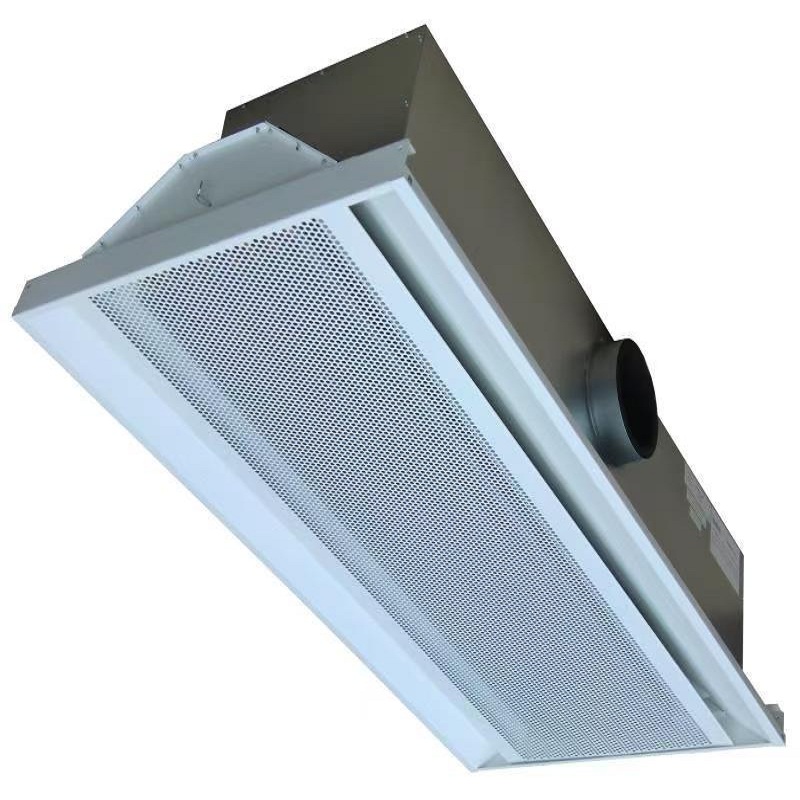

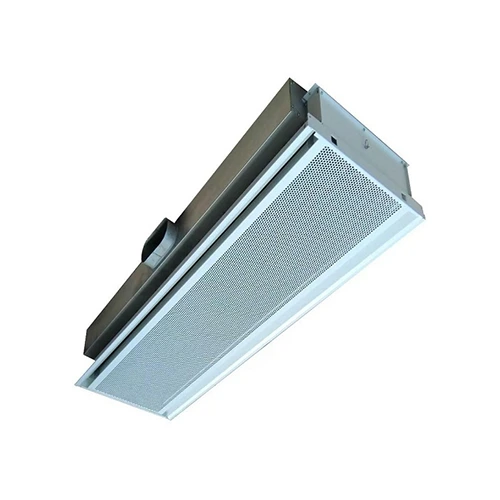

Active Chilled Beam

Key Features – Active Chilled Beams

Low Height Design:
Only 242 mm total height, enabling reduced ceiling voids, higher ceilings, or lower slab-to-slab heights for more floors in a building.

Flexible Sizing:
Standard lengths 1200–3000 mm (300 mm increments) with custom lengths available to match ceiling layouts.

Aesthetic Options:
Choice of perforated or linear slot diffusers with powder-coated finish (RAL 9010, 20% gloss; other RAL colors on request).

Simple Installation:
Can be easily suspended from slabs using threaded rods or wires, with or without false ceilings.

High Capacity, Multi-Nozzle Options:
8 nozzle configurations for high induction rates, suitable for both perimeter and interior zones.

Low Noise Operation:
Efficient nozzle design ensures maximum air induction with low sound levels.

Minimal Maintenance:
No filters, fans, or drain pans. Maintenance limited to occasional cleaning every 2–5 years; easy coil access via hinged diffuser.

Integrated Controls:
Available with CAV controllers, control valves, room sensors, and condensation sensors.

Adjustable Air Distribution (Optional):
Optional air deflectors allow customized discharge patterns.
